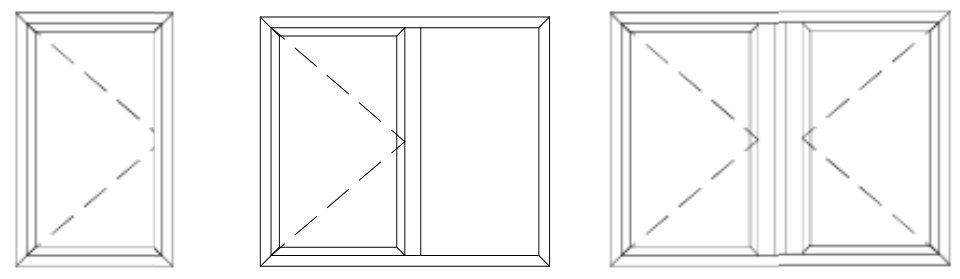

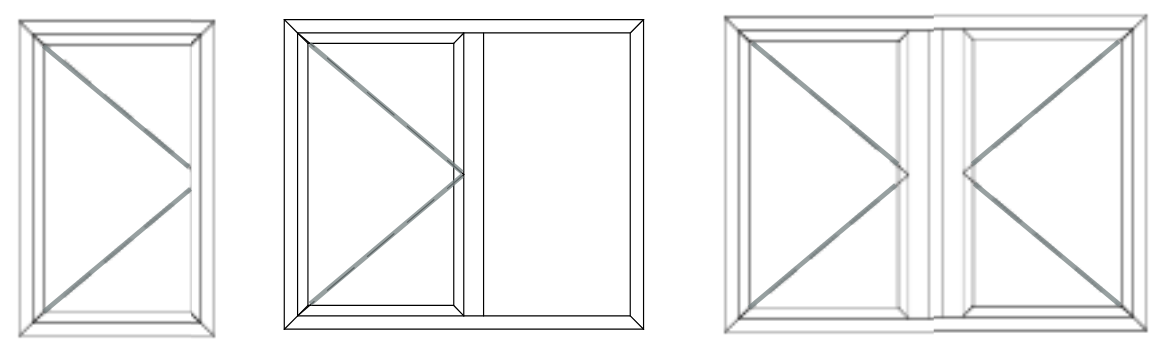

• Option for outward-opening available
  • Option for concealed panel
  • Broad glazing surfaces for enhanced natural light
  • PHIUS certified
Performance

Features

Technical Parameters

  • Water Tightness (Inwards & Outwards): 15 psf
  • Designed Pressure (Operable): CW 65 psf
  • Designed Pressure (Fixed): CW 75 psf
  • Thermal Insulation: From 0.12 Btu/hft2F
  • Acoustic Insulation: STC up to 48 dB
  • Maximum Panel Weight: 660 lbs (300 kg)
  • Maximum Panel Height: 10 ft (3 m)
  • Maximum Panel Width: 5 ft (1,5 m)
  • Glazing: Double and triple

Accessories

Standard

RAL 7016
RAL 9005
RAL 9007
RAL 9016

Special 1

Smooth Carriage
CLassic 31
Classic 35
Metallic Grey

Special 2

Night Promise
Pistache
Royal Green
Perfect Aubergine

Woodgrain

Bright Oak
Sour Cherry
Walnut
Winchester

Anodized

C-0-S Anodized Natural Silver
C-31-S Anodized Inox
C-32-S Anodized Champagne
C-35-S Anodized Black

Thickness

Max: 0.83" (21 mm)

Max: 2.76" (70 mm)

Glazing

Double

Triple

Glass Types

Laminated

Tempered

Extras

High Altitude

Acoustic Insulated

Bird / Turtle Friendly

Priva Lite Switch Glass

Spandrel / Frit / Lacobel

Window Hinge - Concealed

Window Hinge - Visible

Standard

Cubic

Contemporary

Inox

Outward

SDL in pane

SDL interior/exterior

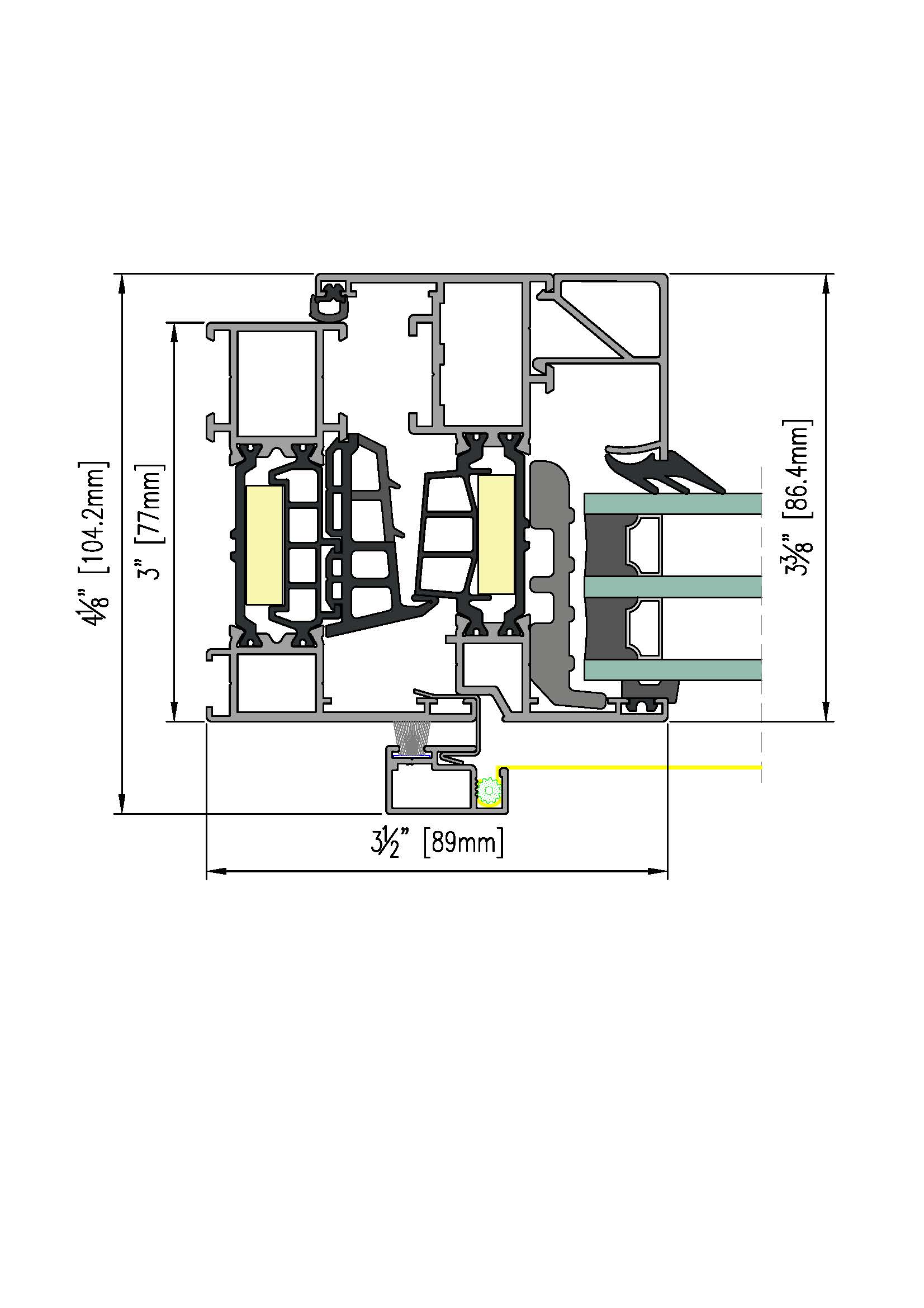

Roller Insect Screen

Fixed Insect Screen

Downloads

AVAILABLE UPON REQUEST
