- Advanced gasketing and Lift’n’Slide hardware for highest tightness

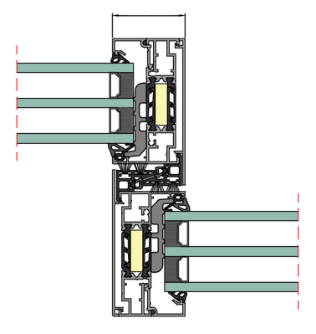

- Option of 2" interlock visible width and oversize capability (up to 11'H & 11'W)

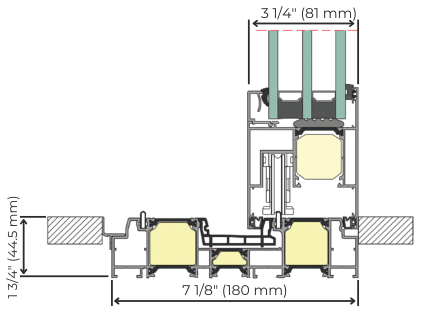

- Low-profile & ADA threshold design

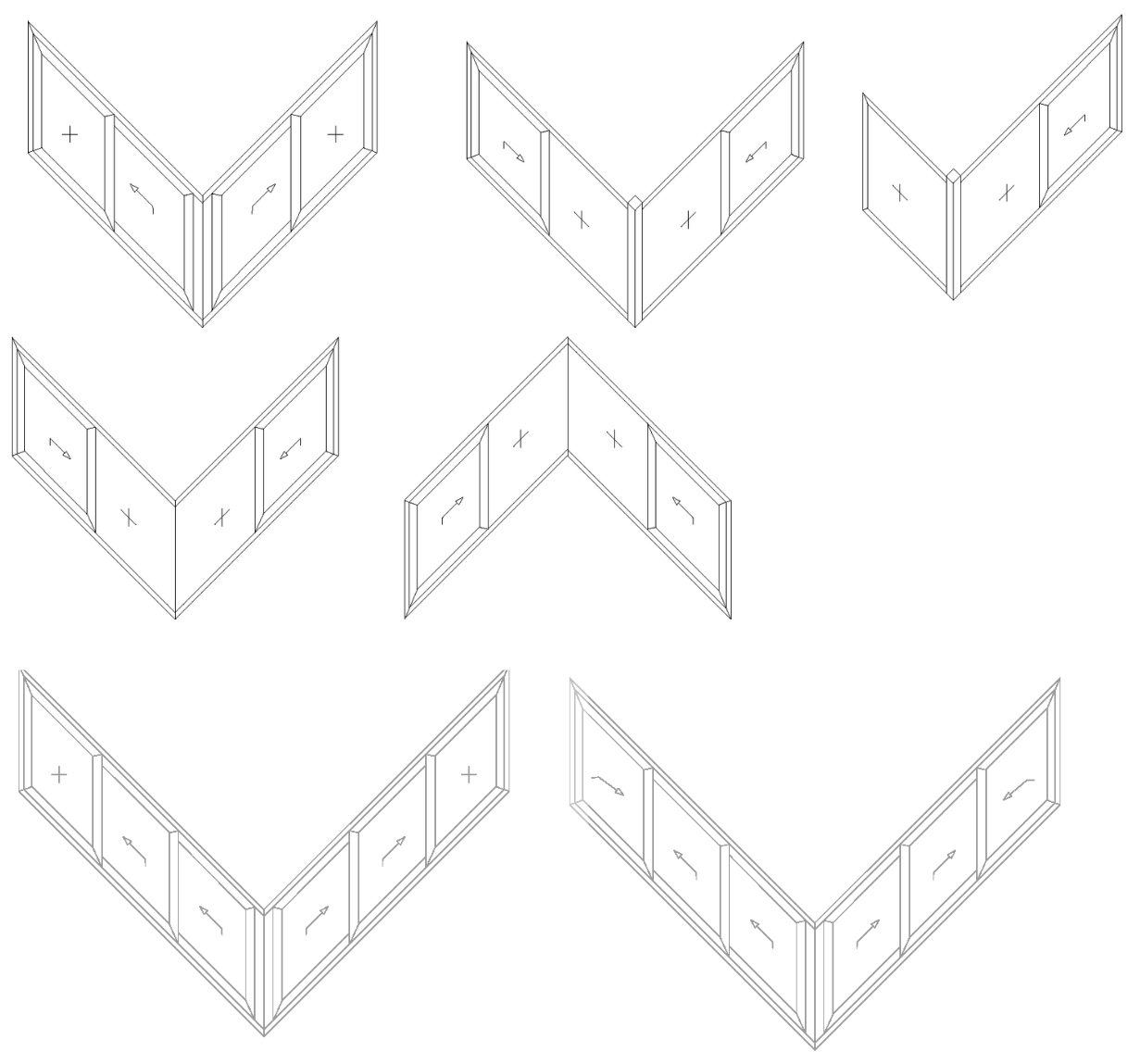

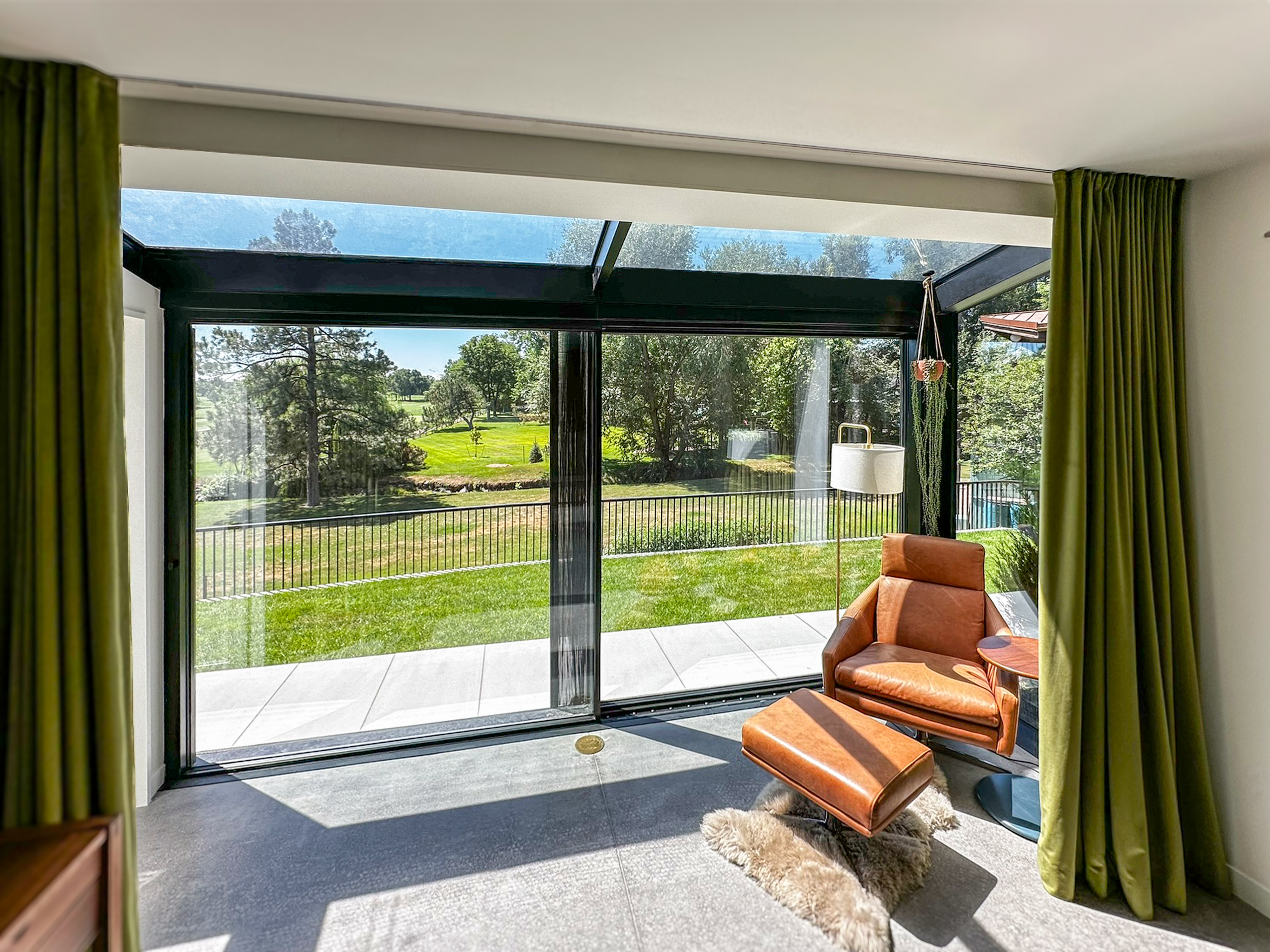

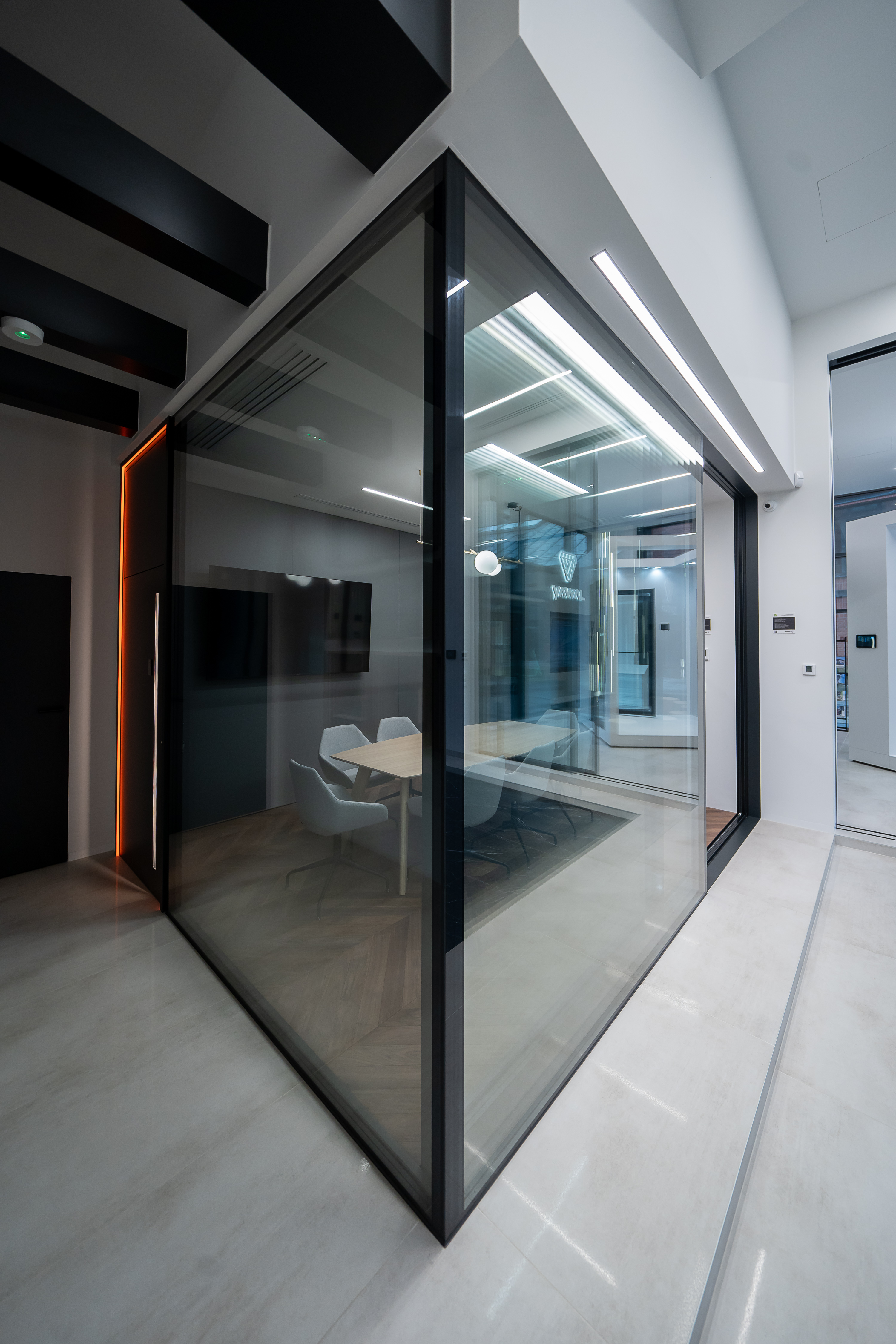

- Option for full glass corners at 90 degrees, no visible profile slider, blending with wall structure. Hardware invisible from outside and "full glass house" visible effect.
- Automatic opening and closing systems including Bluetooth, eye scanning, & fingerprint options
- Superior U-value range of 0.12-0.25
Features
Technical Parameters
- Water Tightness: 12 psf
- Designed Pressure: CW 60 psf
- Thermal Insulation: From 0.12 Btu/hft2F
- Acoustic Insulation: STC up to 47 dB
- Maximum Panel Weight: 1000 lbs (450 kg)
- Maximum Panel Height: 11 ft (3,4 m)
- Maximum Panel Width: 11 ft (3,4 m)
Accessories
Standard
RAL 7016
RAL 9005
RAL 9007
RAL 9016
Special 1
Smooth Carriage
CLassic 31
Classic 35
Metallic Grey
Special 2
Night Promise
Pistache
Royal Green
Perfect Aubergine
Woodgrain
Bright Oak
Sour Cherry
Walnut
Winchester
Anodized
C-0-S Anodized Natural Silver
C-31-S Anodized Inox
C-32-S Anodized Champagne
C-35-S Anodized Black
Thickness
Min: 1.14 (29 mm)
Max: 2.48" (63 mm)
Low-E coating
- Various options depends from required conditions SHGC (Solar Heat Gain Coefficient) / LT (Light Transmittance). As a standard every pane with e-coating.
