- Available in sizes up to 16 feet
- Superior Visible Light Transmittance (VLT) w/minimal (1") width and 98% unobstructed views
- Fully integrated linear drainage system
- Remote control opening and closing

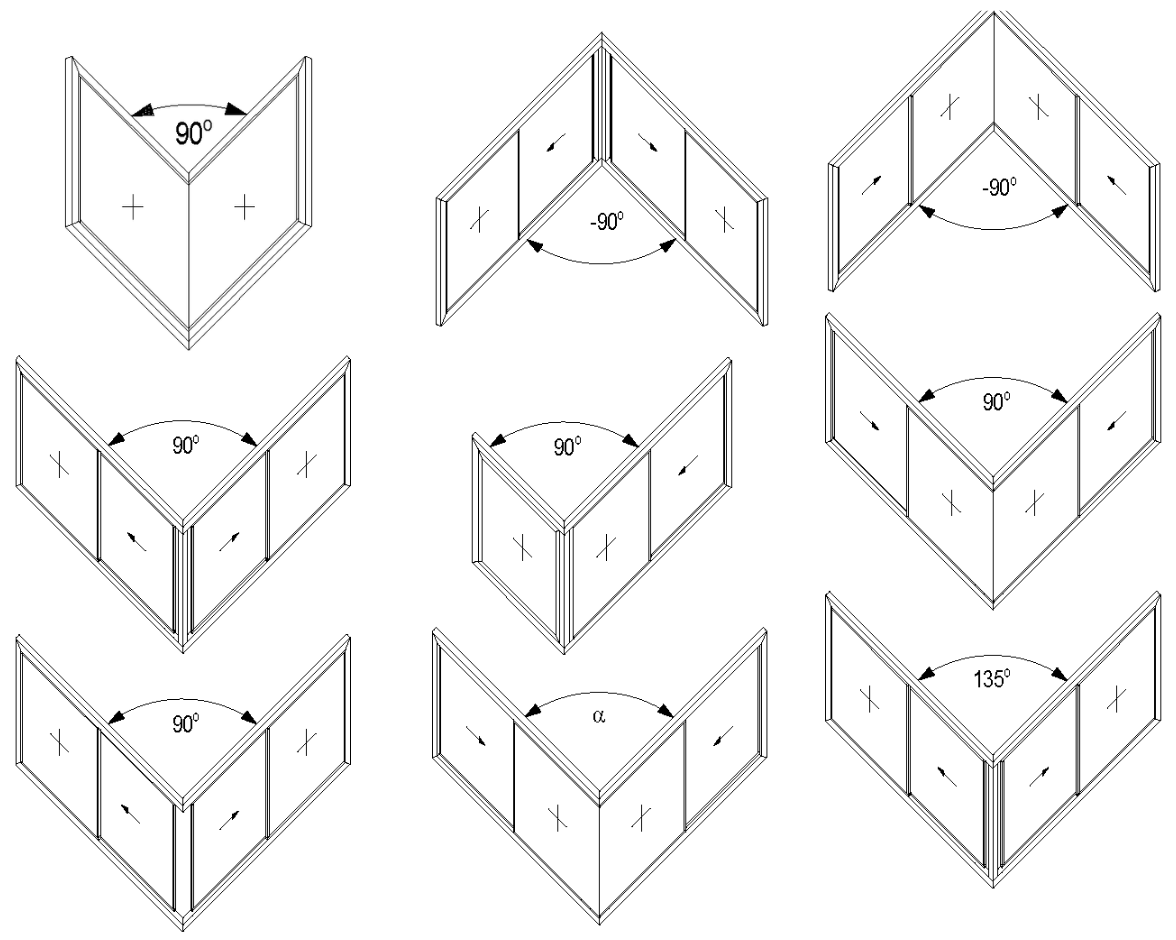

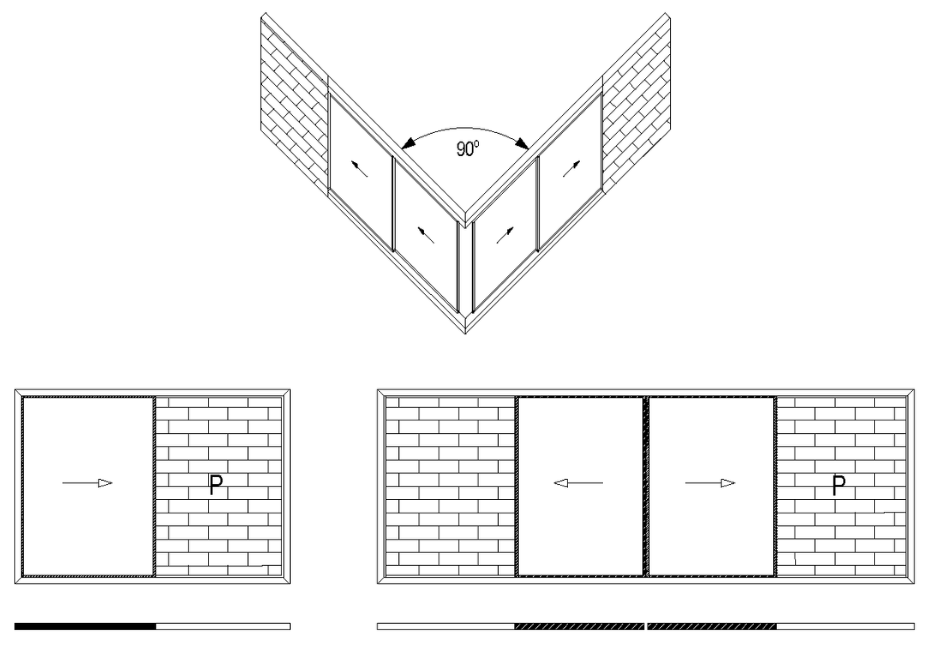

- 90-degree corner opening and pocket installation design options available
Features
Technical Parameters
- Water Tightness: 5 psf
- Designed Pressure: LC 40 psf
- Thermal Insulation: From 0.12 Btu/hft2F
- Acoustic Insulation: STC up to 42 dB
- Maximum Panel Weight: 3300 lbs (1500kg)
- Maximum Panel Height: 16 ft (5 m)
- Maximum Panel Width: 21 ft (6,5 m)

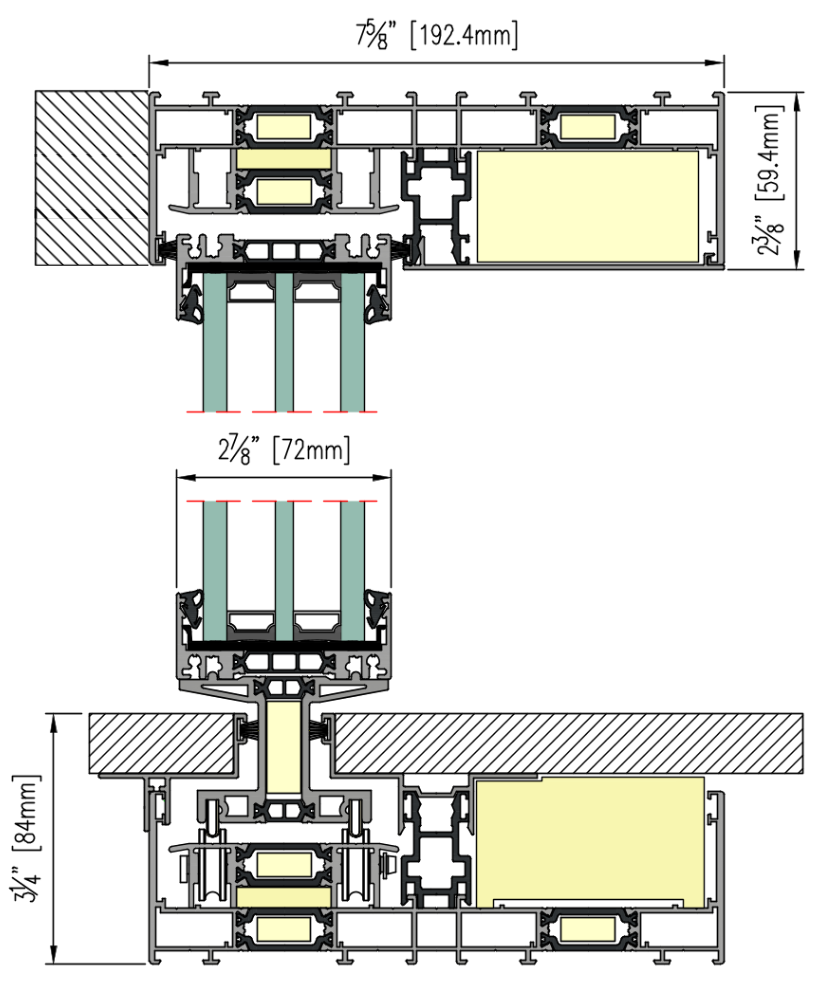

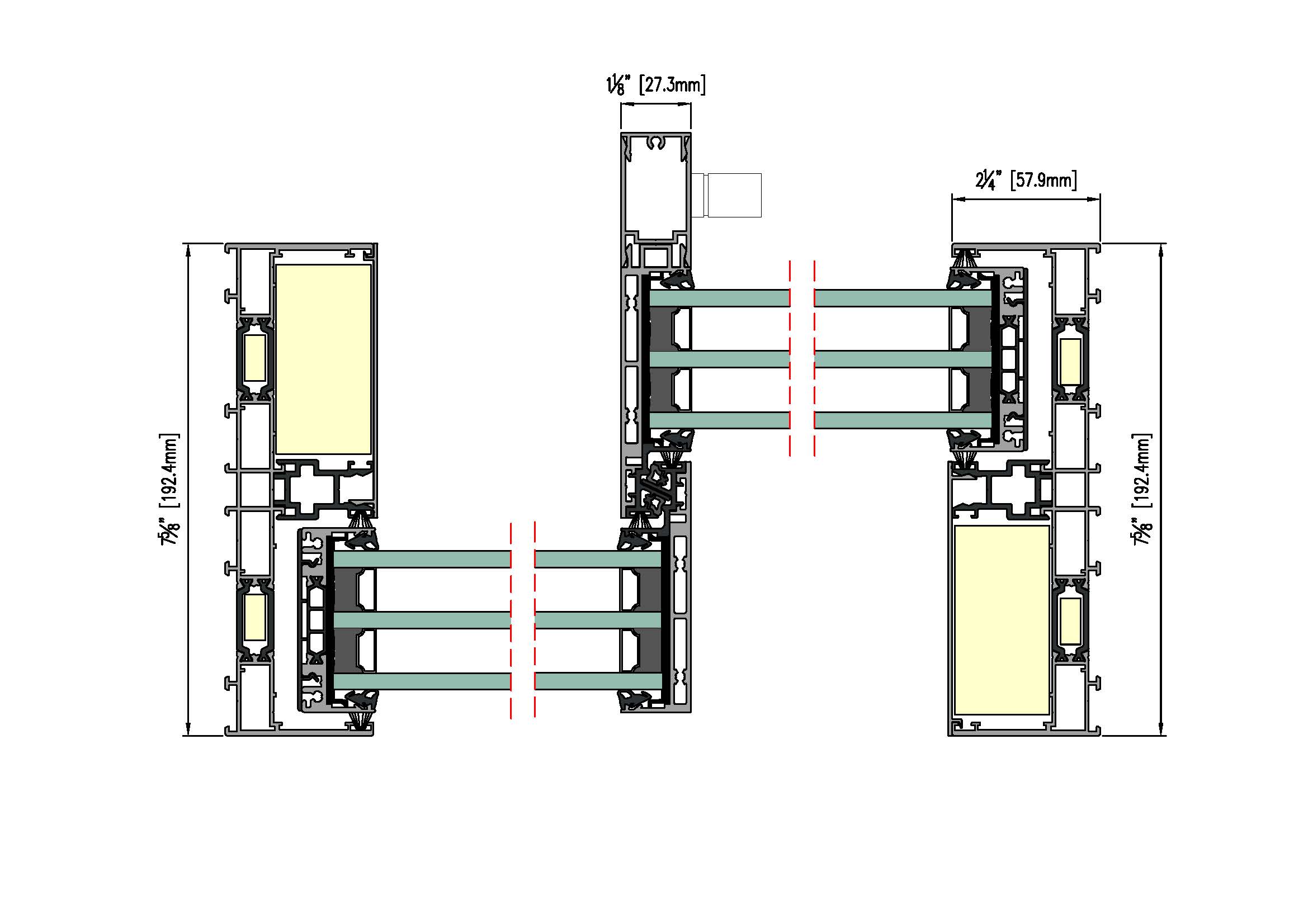

Cross Sections

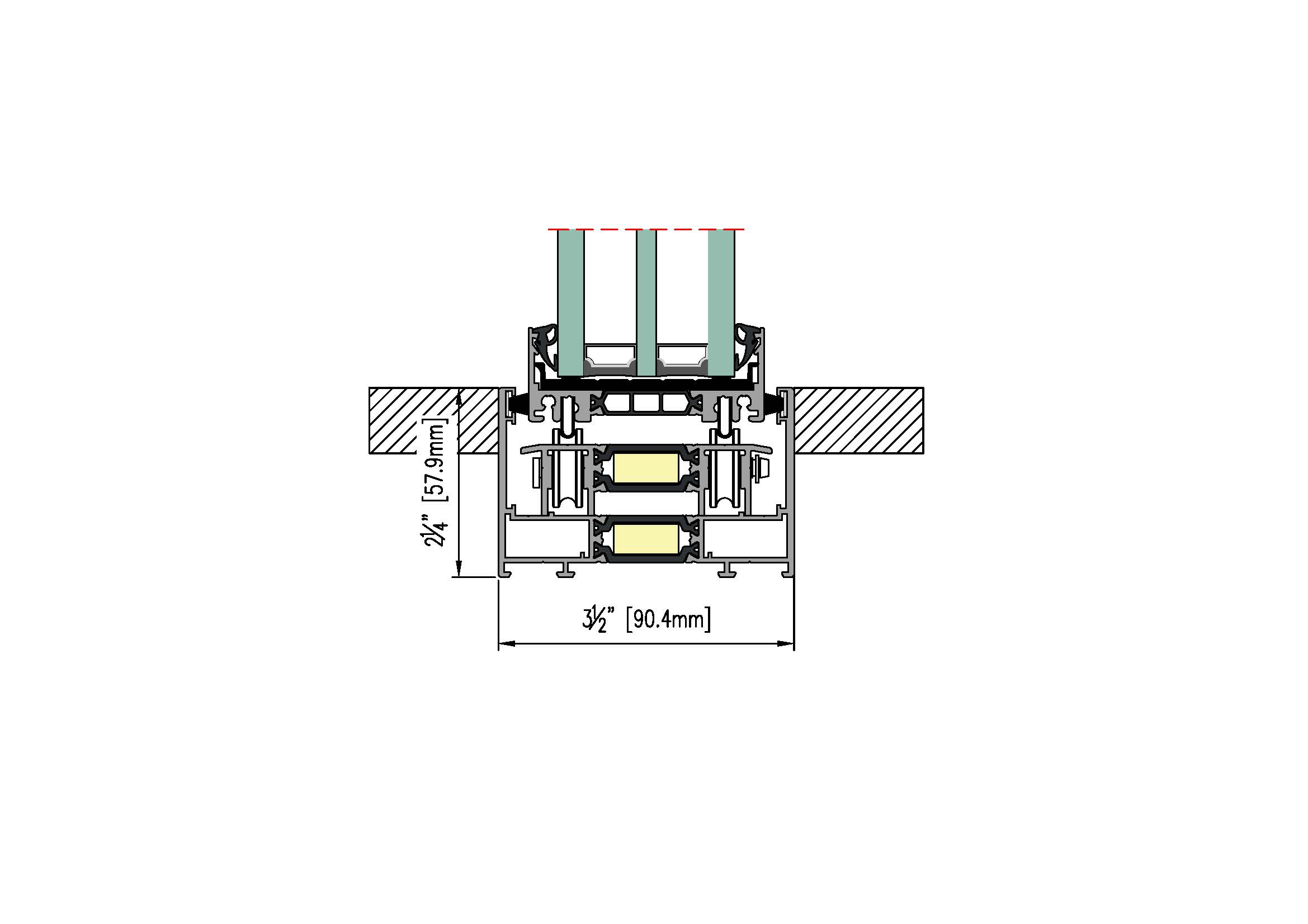

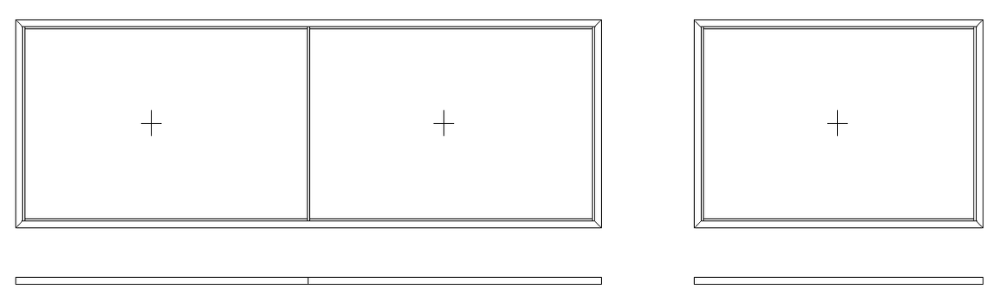

MOREVIEW SINGLE TRACK

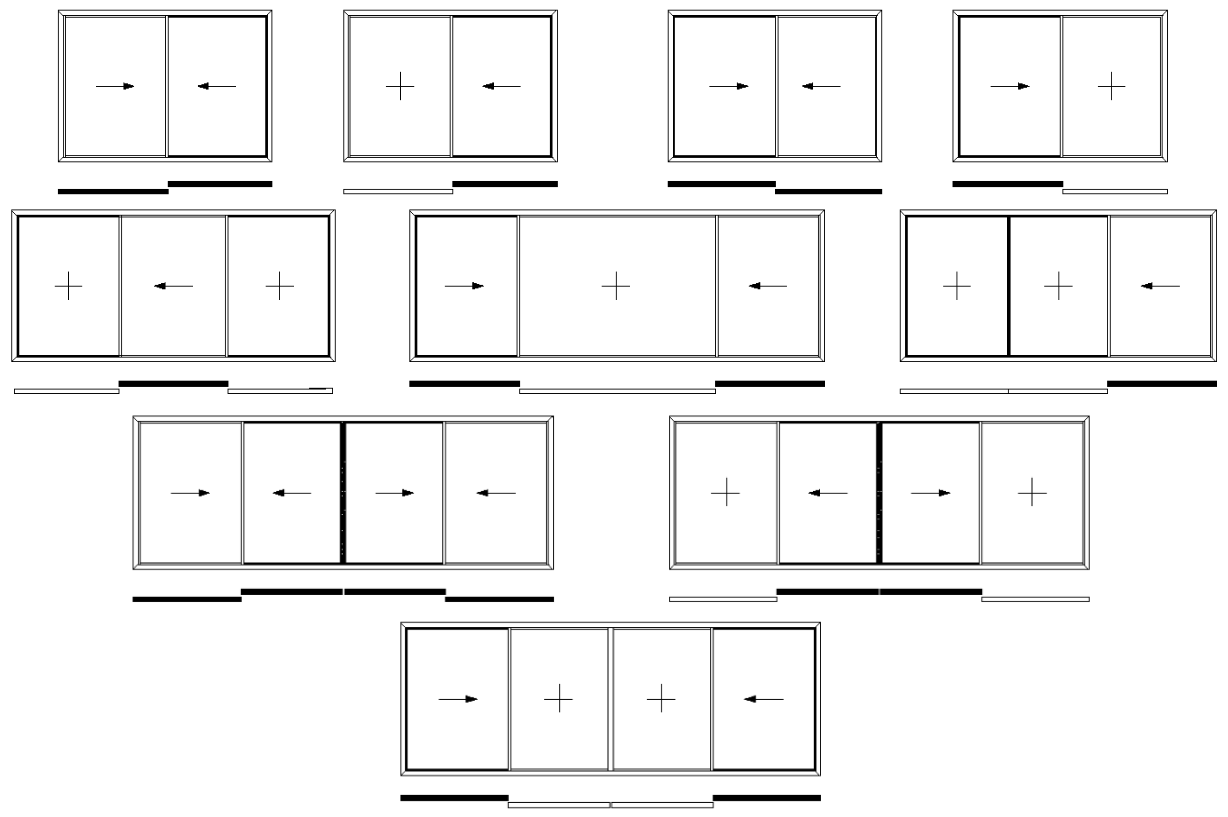

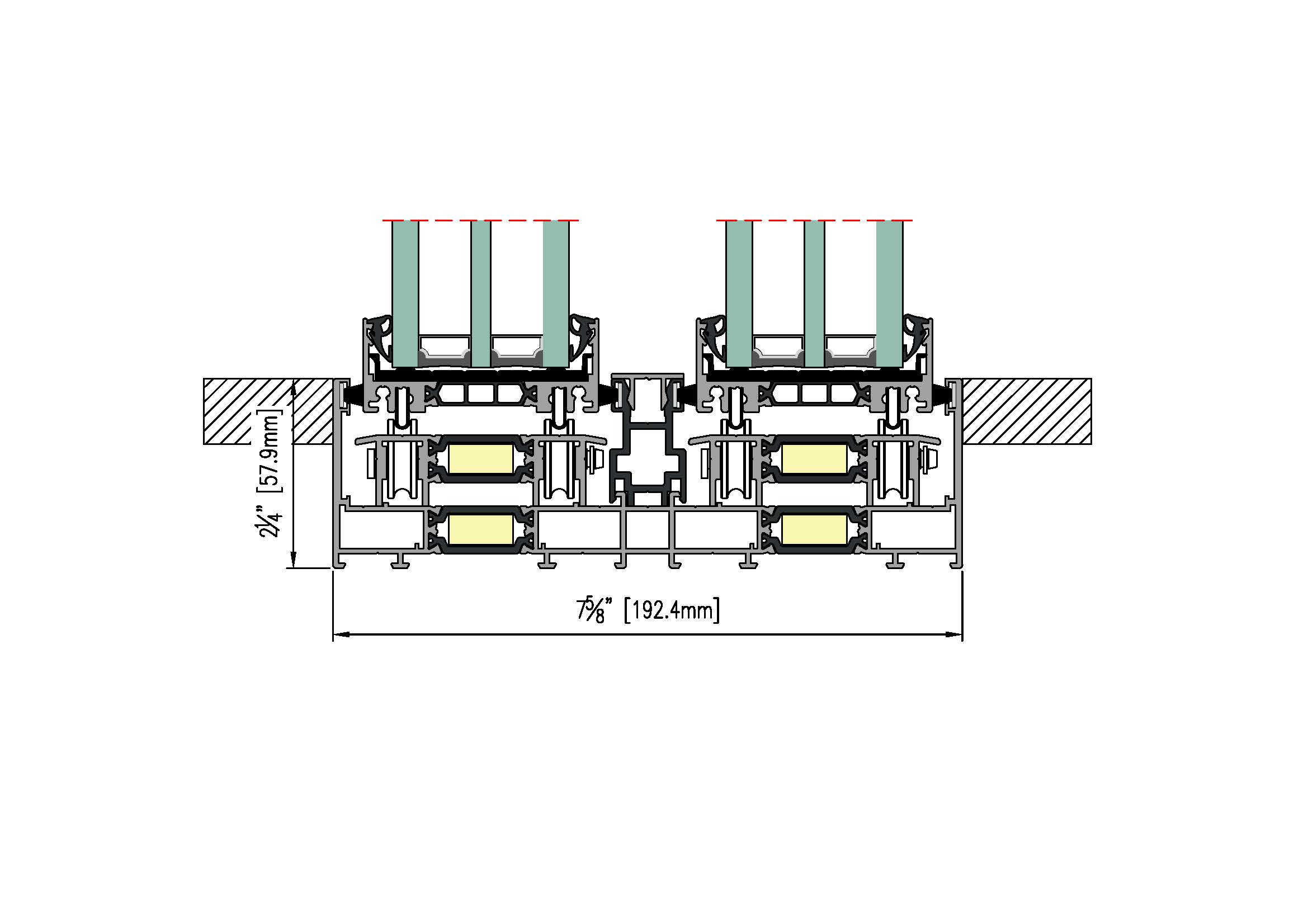

MOREVIEW DOUBLE TRACK

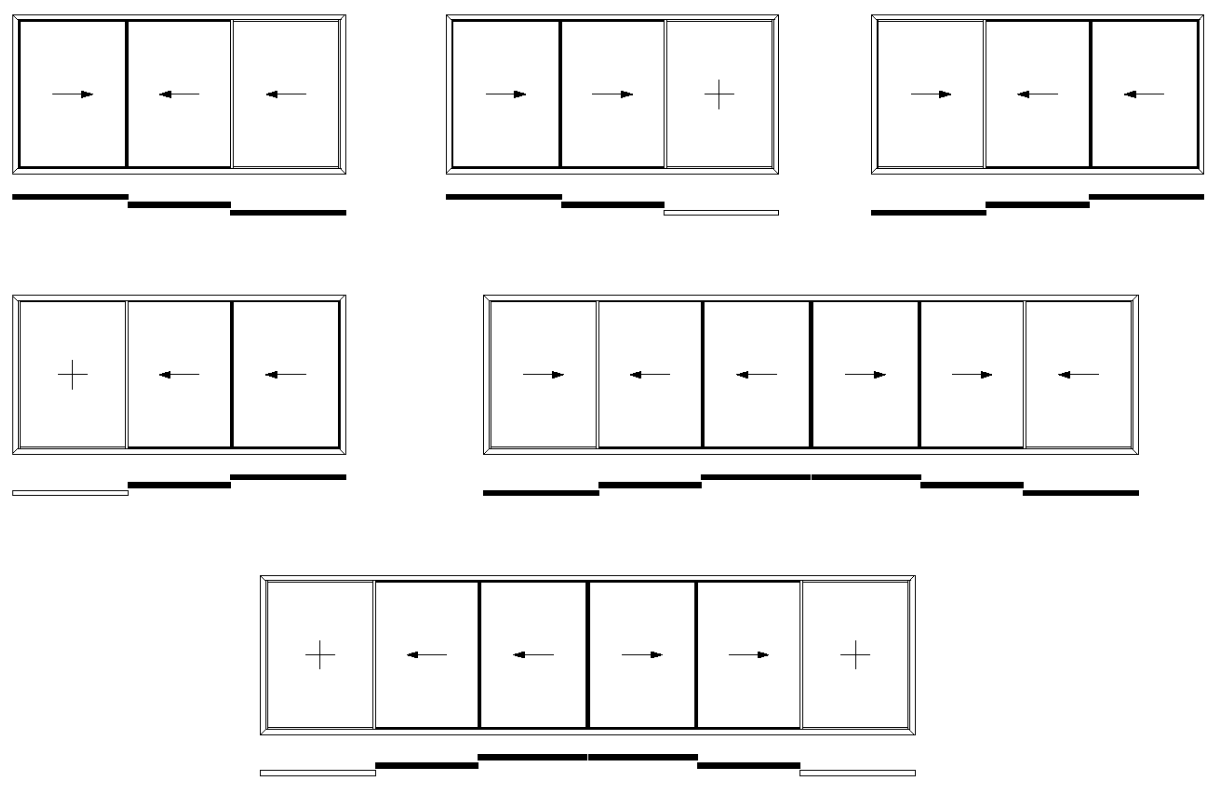

MOREVIEW TRIPLE TRACK

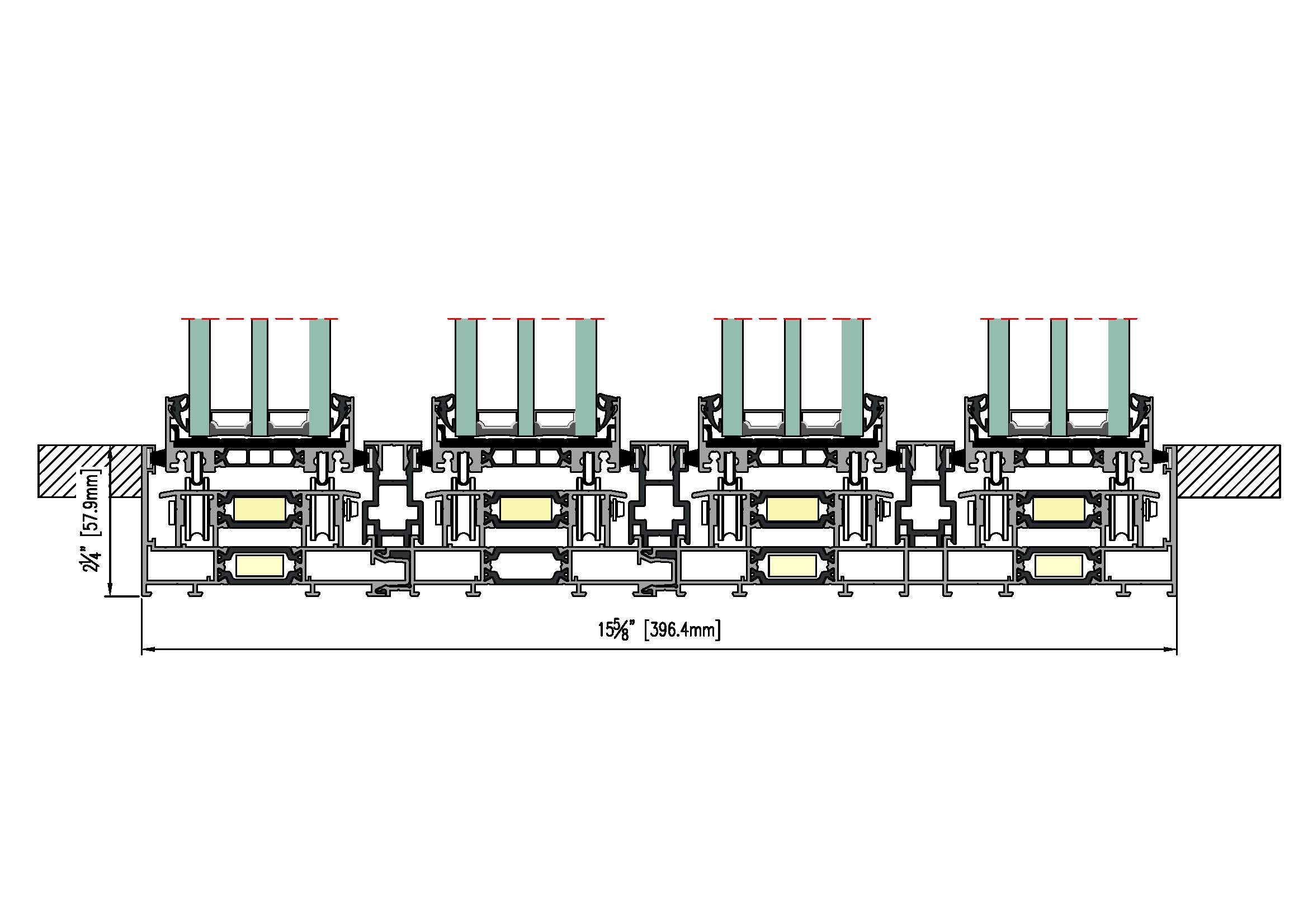

MOREVIEW MULTI-TRACK (4)

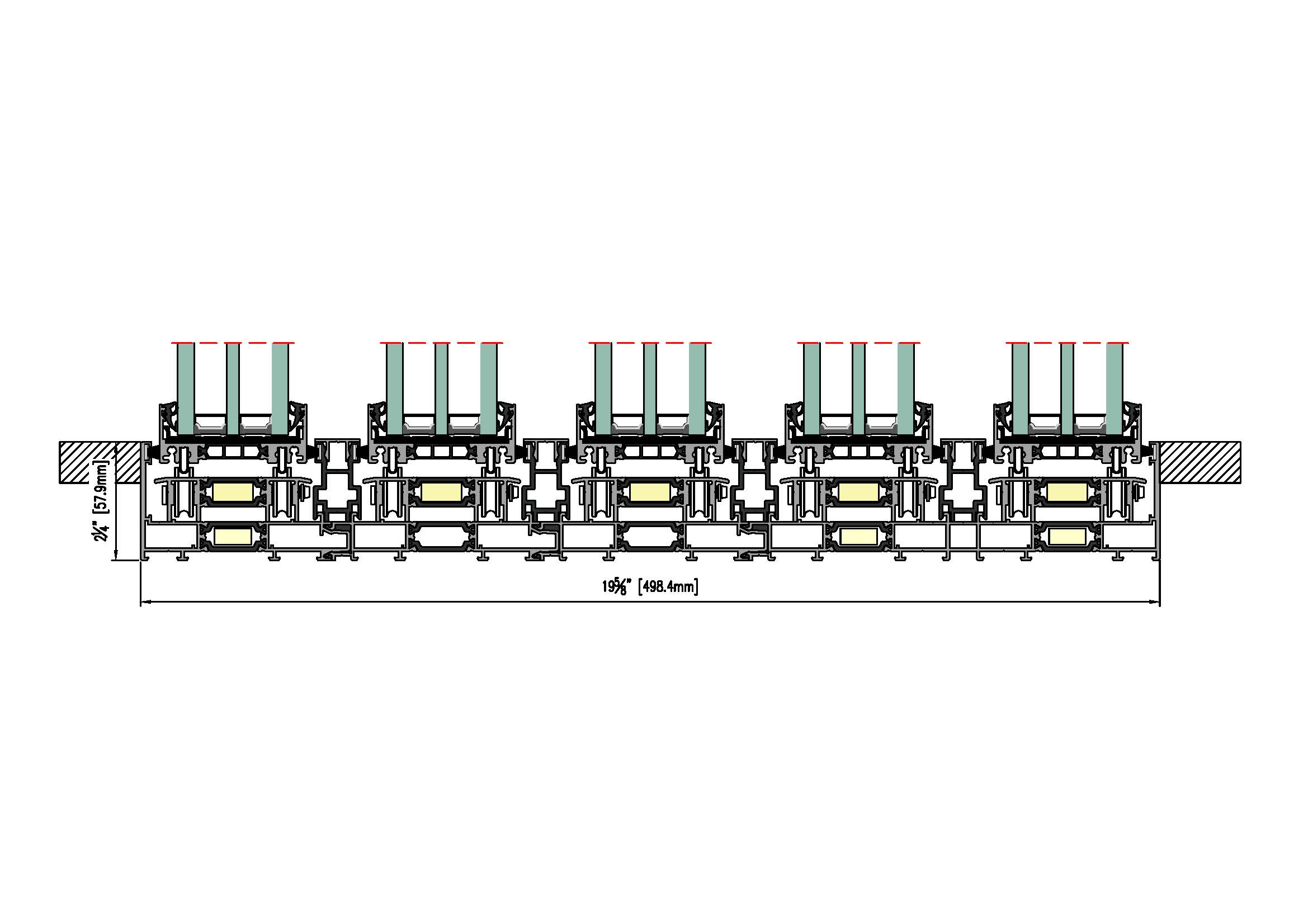

MOREVIEW MULTI-TRACK (5)

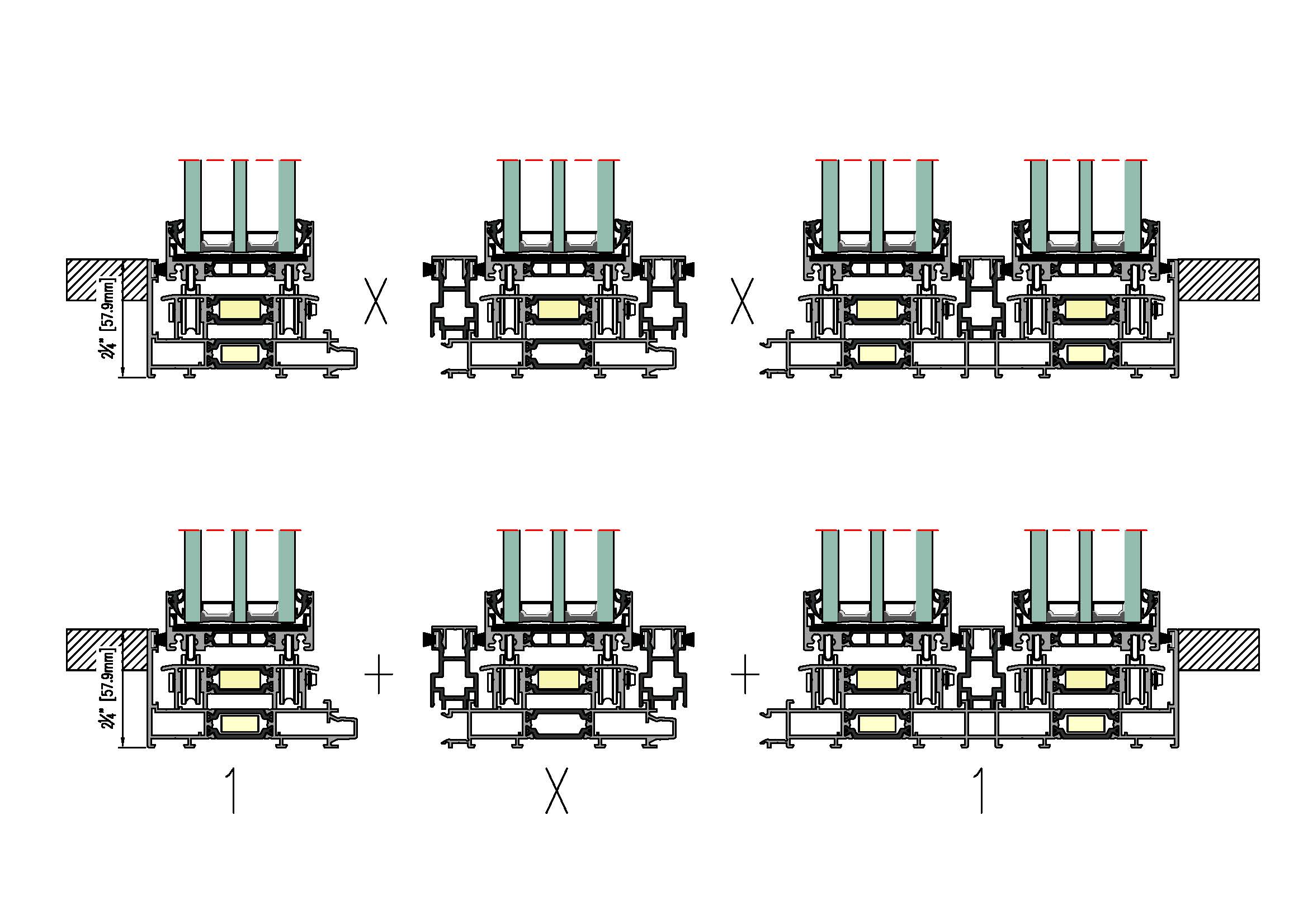

MOREVIEW MULTI-TRACK (VARIOUS)

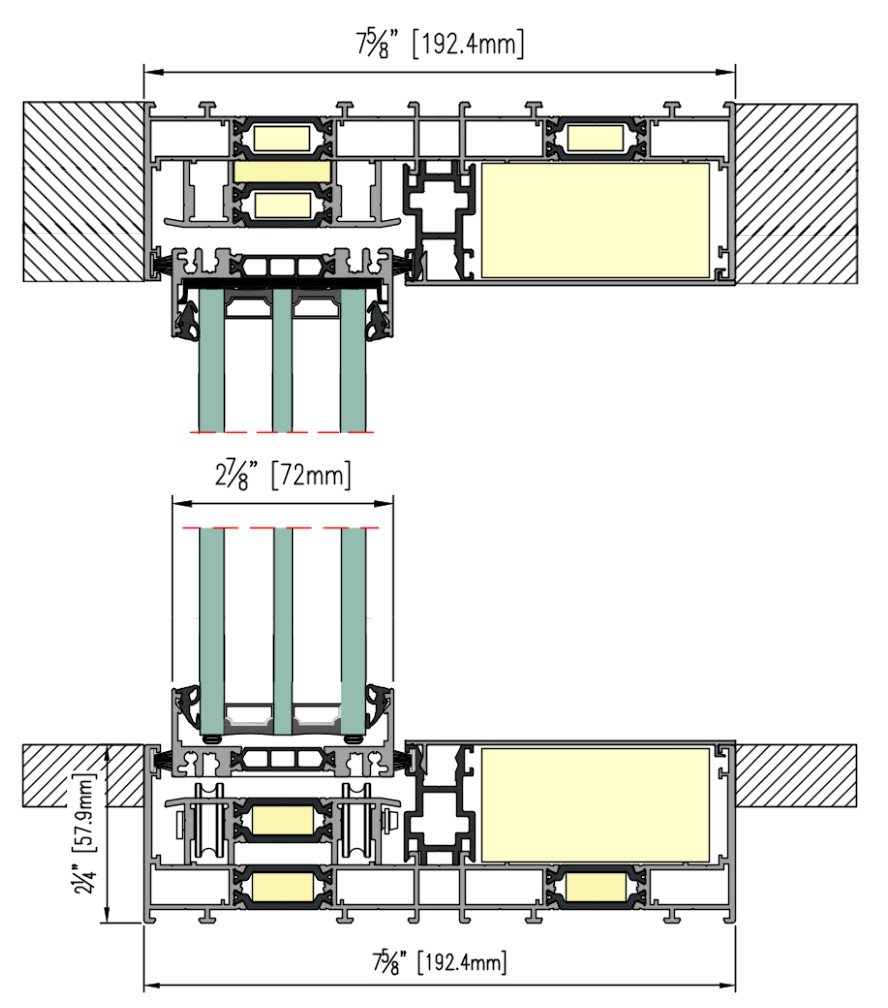

MOREVIEW STANDARD VISIBLE TRACK

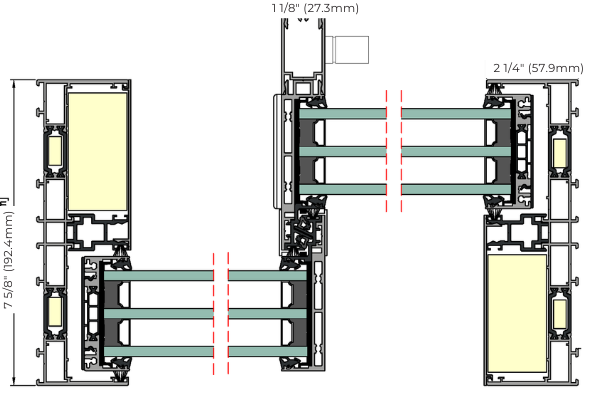

MOREVIEW INTERLOCK LOCKING OPTION
MOREVIEW SIDE LOCKING OPTION
MOREVIEW UPPER VIEW J-CHANNEL
MOREVIEW SIDE VIEW J-CHANNEL
Accessories
Standard
RAL 7016
RAL 9005
RAL 9007
RAL 9016
Special 1
Smooth Carriage
CLassic 31
Classic 35
Metallic Grey
Special 2
Night Promise
Pistache
Royal Green
Perfect Aubergine
Woodgrain
Bright Oak
Sour Cherry
Walnut
Winchester
Anodized
C-0-S Anodized Natural Silver
C-31-S Anodized Inox
C-32-S Anodized Champagne
C-35-S Anodized Black
Thickness
Min: 1.22" (31 mm)
Max: 2.36" (60 mm)
Low-E coating
- Various options depends from required conditions SHGC (Solar Heat Gain Coefficient) / LT (Light Transmittance). As a standard every pane with e-coating.
Glazing
Double
Triple
Glass Types
Laminated
Tempered
Extras
High Altitude
Acoustic Insulated
Bird / Turtle Friendly
Priva Lite Switch Glass
Spandrel / Frit / Lacobel
Knob w/Key BT Lock
Knob w/Key BT Stulp
Knob w/out Key BT Lock
Knob w/out Key BT Stulp
SDL in pane
SDL interior/exterior
Roller Insect Screen
Pleated Screen
Centor Insect Screen
Downloads
AVAILABLE UPON REQUEST
