Yawal windows allow for the delivery of natural light into the residential structure while simultaneously providing protection from adverse weather conditions.
MoreView

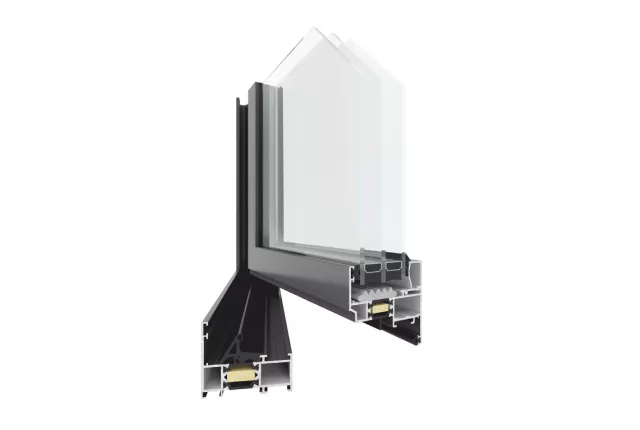

Enter the realm of minimalism and clarity with the MOREVIEW Window. This innovative design redefines modern windows, opening up vast views while subtly integrating with contemporary and historical architecture, making it a transformative choice.
- Minimal frames and panel profiles
- 2' visible style
- Versatile for contemporary and historical settings
- Great alternative to steel profiles
Configuration Examples
-
Water Tightness
12 psf
-
Design Pressure
Operable 40 psf / Fixed 60 psf
-
Thermal Insulation
From 0.17 Btu/hft2F
-
Acoustic Insulation
STC up to 44 dB
-
Max Panel Weight
Operable 330 lbs / Fixed 660 lbs
-
Max Panel Height
9 ft
-
Max Panel Width
5 ft
Industrial

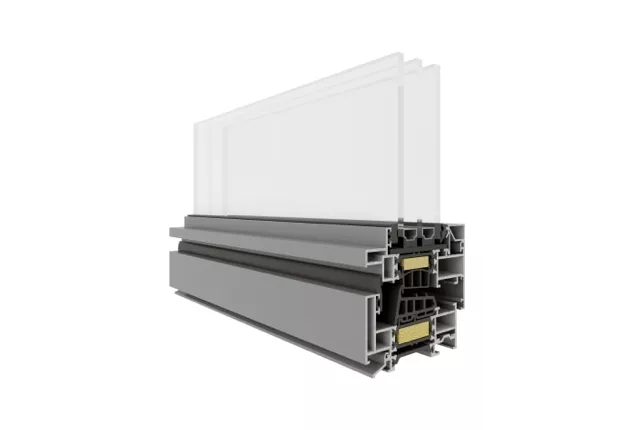

Our Industrial windows offer an elegant charm. Designed in three options - SLIM, STEEL and CUBIC - each offers possibilities of curved shapes, making it highly customizable to assemble in the most demanding projects.
- Three profiles styles, including curved shapes
- 2.75" visible style
- Hidden gravitational drainage with profile-dirven condensation diversion
- Option for outward opening available
Configuration Examples
-
Water Tightness
Inwards 12 psf / Outwards 15 psf
-
Design Pressure
Operable 50 psf / Fixed 65 psf
-
Thermal Insulation / U-Value
From 0.13 Btu/hft2F
-
Acoustic Insulation
STC up to 46 dB
-
Max Panel Weight
Operable 440 lbs / Fixed 900 lbs
-
Max Panel Height
10 ft
-
Max Panel Width
5 ft
Performance

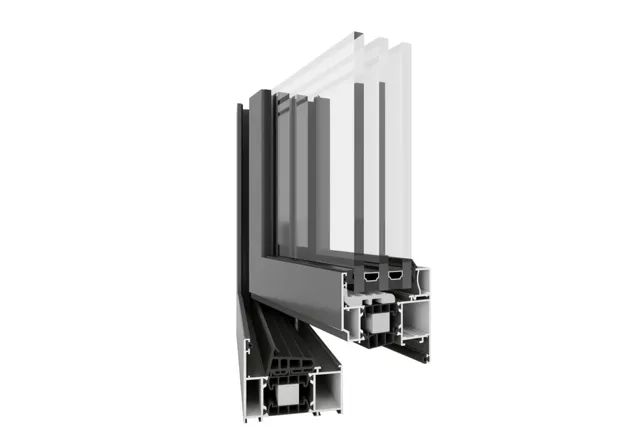

The Performance Window System epitomizes security and innovation in modern construction. It excels in thermal insulation, soundproofing, and weather resistance. With specialized separators in its aluminum profiles, this system stands out as a durable, high-performing choice for contemporary architecture.
- Broad glazing surfaces for enhanced natural light
- Option for concealed panel
- Option for outward opening
- PHIUS certified
Configuration Examples
-
Water Tightness
15 psf
-
Design Pressure
Operable 65 psf / Fixed 75 psf
-
Thermal Insulation/U-Value
From 0.12 Btu/hft2F
-
Acoustic Insulation
STC up to 48 dB
-
Max Panel Weight
Operable 660 lbs / Fixed 1100 lbs
-
Max Panel Height
10 ft
-
Max Panel Width
5 ft
Eco
Affordable Comfort, Modern Style.
- Ideal Project: Residential and light commercial
- Project Suitability: Modern and energy-efficient builds
- Climate: Performs well in diverse weather conditions
- Performance vs Cost: High value without compromising quality
Configuration Examples
-
Water Tightness
15 psf
-
Design Pressure
Operable 65 psf / Fixed 75 psf
-
Thermal Insulation / U-Value
From 0.17 Btu/hft2F
-
Acoustic Insulation
STC up to 48 dB
-
Max Panel Weight
Operable 440 lbs / Fixed 1100 lbs
-
Max Panel Height*
8 ft / 2438 mm
-
Max Panel Width*
5 ft / 1524 mm
Passive

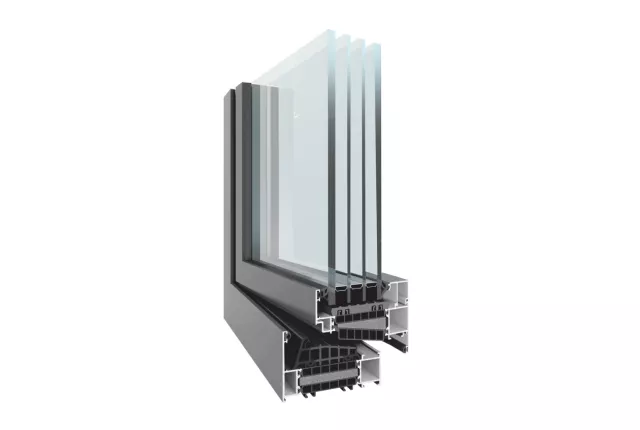

The Passive Window exemplifies cutting-edge, energy-efficient construction. It provides exceptional thermal insulation and versatile glazing options that cater to eco-conscious, large-scale developments.
- Best-in-class thermal insulation in the industry
- Supports up to quadruple-glazing with 4-pane glass configurations
- Suitable for passive buildings and net-zero energy applications
- PHIUS certified
Configuration Examples
-
Water Tightness
15 psf
-
Design Pressure
Operable 65 psf / Fixed 75 psf
-
Thermal Insulation / U-Value
From 0.08 Btu/hft2F
-
Acoustic Insulation
STC up to 48 dB
-
Max Panel Weight
Operable 660 lbs / Fixed 1100 lbs
-
Max Panel Height
10 ft
-
Max Panel Width
5 ft
