The elegance and innovative design of our sliding & folding doors allow the track to blend seamlessly with the floor.  Motorized panel options enhance ease and modern living.

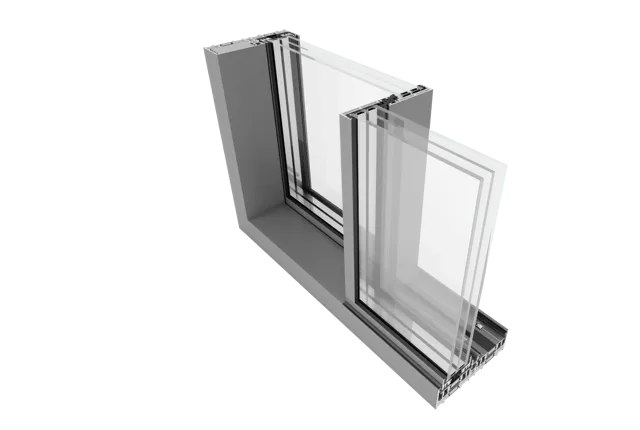

MoreView

Designed for maximum light exposure, MOREVIEW is a testament to expansive glazing surfaces with near-total transparency, enhancing architectural integrations with its 90-degree corner opening.

  • Available in sizes up to 16 feet
  • Superior Visible Light Transmittance (VLT) w/minimal (1") width and 98% unobstructed views
  • Fully integrated linear drainage system
  • 90-degree corner opening and pocket installation design options available

Configuration Examples

  • Single Track
  • Double Track
  • Triple Track
  • Pocket
  • Corner (Multitrack)

  • Thermal Insulation / U-Value

    From .12 Btu/hft2F

  • Acoustic Insulation

    STC up to 42 dB

  • Max Panel Height

    16 ft

  • Max Panel Width

    21 ft

  • Max Panel Weight

    3300 lbs

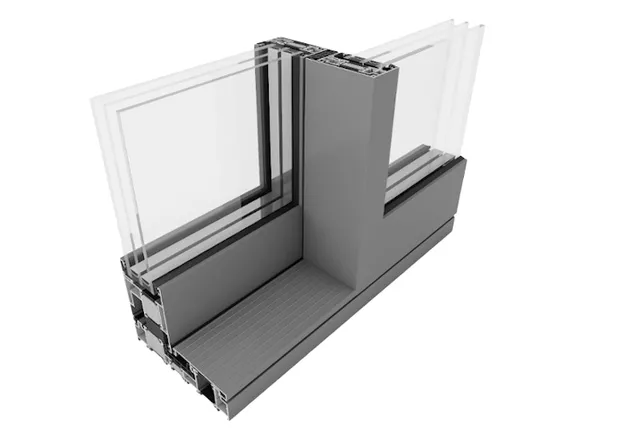

Performance Lift 'n' Slide

The Performance Lift’N’Slide system, with expansive glazing, enhances natural light ingress, and advanced automation, offers unmatched user convenience for any multi-family setting.

  • Option of 2" interlock visible width and oversize capability (up to 11'H & 11'W)
  • Low-profile & ADA threshold design
  • Option for full glass corners at 90 degrees, no visible profile slider, blending with wall structure. Hardware invisible from outside and "full glass house" visible effect.
  • Automatic opening and closing systems including Bluetooth, eye scanning, & fingerprint options

Configuration Examples

  • Monorail
  • Double Track
  • Triple Track
  • Pocket
  • Corner
  • Low Threshold
  • Single Track with Curtain Wall

  • Thermal Insulation / U-Value

    From 0.12 Btu/htf2F

  • Acoustic Insulation

    STC up to 47 dB

  • Max Panel Height

    11 ft

  • Max Panel Width

    11 ft

  • Max Panel Weight

    1000 lbs

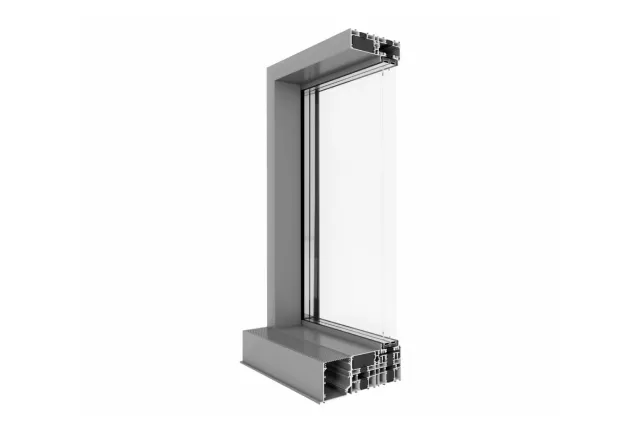

Eco DP Slide

Elevate your home's ambiance with our Eco DP Slide doors. These doors blend the timeless appeal of French Door aesthetics with modern functionality, seamlessly fitting into a variety of residential architectural styles.

  • Can utilize double or triple pane insulating glass units for more performance and better acoustics
  • Energy-efficient, sustainable and environmentally focused
  • Endless design options such as custom finishes, glass choices, shapes, and sizes
  • Our most cost-efficient and easy to order/install product line

Configuration Examples

  • Double Track
  • Double Track with Fixed Panels
  • Triple Track

  • Thermal Insulation / U-Value

    From 0.23 Btu/hft2F

  • Acoustic Insulation

    STC up to 40 dB

  • Max Panel Height

    8 ft

  • Max Panel Width

    4 ft

  • Max Panel Weight

    440 lbs

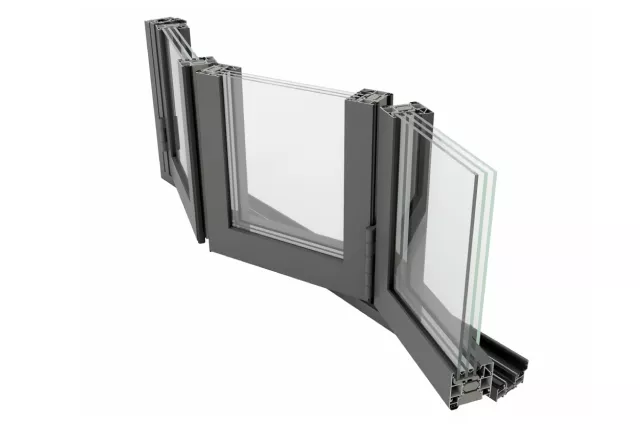

Bi-Fold

Bi-fold doors offer flexible, multi-panel designs for diverse configurations, optimizing space utilization and blending indoor-outdoor living with stylish efficiency.

  • Unlimited number of panels with various opening sizes
  • Best-in-class panel height of up to 12 ft
  • Options for low thresholds
  • Configurations include inward/outward and left/right openings

Configuration Examples

  • 2 -3 Panes
  • 4 Panes
  • 5 Panes
  • 6 Panes
  • 7+ Panes

  • Thermal Insulation / U-Value

    From 0.15 Btu/hft2F

  • Acoustic Insulation

    STC up to 42 dB

  • Max Panel Height

    12 ft

  • Max Panel Width

    4 ft

  • Max Panel Weight

    440 lbs

Downloads

pdf file

SLIDING DOOR CHEAT SHEETS
