Explore the architectural distinction of Yawal Curtain walls, featured on Europe's most iconic buildings for over 30 years. Our systems integrate seamlessly with our windows and doors, offering concealed options for a unified and aesthetically pleasing design suitable for both contemporary and historical structures.

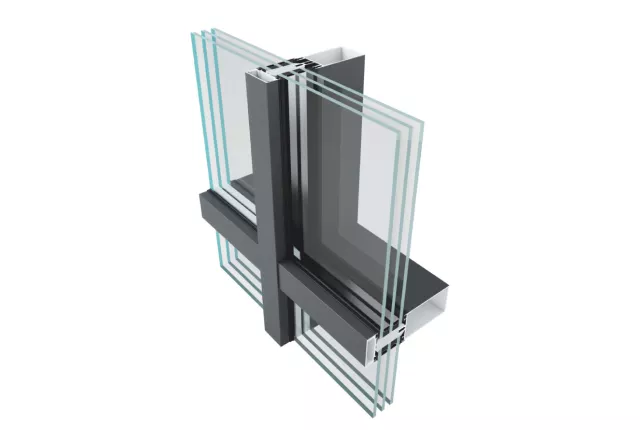

The Design Line Curtain Wall System stands as a marvel of architectural innovation, seamlessly combining sleek aesthetics with superior thermal, acoustic and environmental performance. Ideal for commercial and upscale residential buildings, it turns any façade into a visually captivating masterpiece.
Features
- Ideal for high structures with no size limitations, such as commercial curtain walls and residential applications
- Various cap options for beautiful curtain wall aesthetics
- Supports diverse structures including turns, bends, and polygons
- Optimal tightness with aesthetic excellence
- Option for "smooth line" with no external slats
Technical Parameters
- Water Tightness: 15 psf
- Designed Pressure: CW 75 psf
- Thermal Insulation: From 0.11 Btu/hft2F
- Acoustic Insulation: STC up to 50 dB
- Glazing: Double and triple

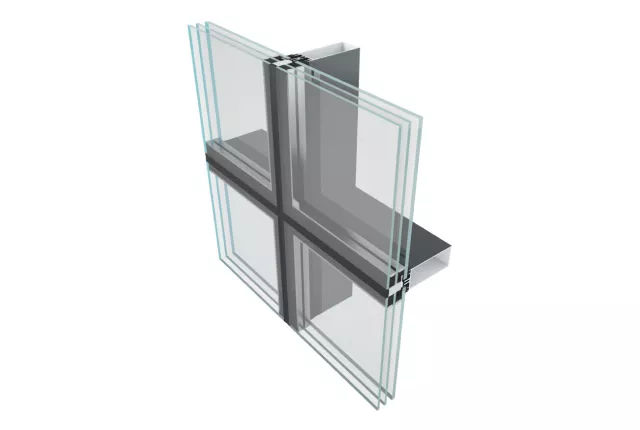

The Smooth Curtain Wall System integrates quick assembly with the beauty of a structural facade, striking a perfect balance between form and function. Offers option for "smooth line" with no external slats.
Features
- Ideal for high structures with no size limitations, such as commercial curtain walls and residential applications
- Various cap options for beautiful curtain wall aesthetics
- Supports diverse structures including turns, bends, and polygons
- Optimal tightness with aesthetic excellence
- Option for "smooth line" with no external slats
Technical Parameters
- Water Tightness: 15 psf
- Designed Pressure: CW 75 psf
- Thermal Insulation: From 0.11 Btu/hft2F
- Acoustic Insulation: STC up to 53 dB
- Glazing: Double and triple

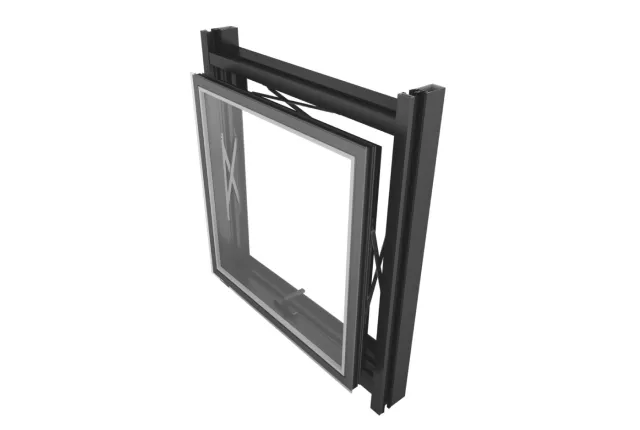

This modern solution blends curtain wall elegance with window practicality, featuring an "invisible" frame from the outside for a sleek, continuous façade.
Features
- Hopper, top-hung, casement, parallel window options
- Uniform surface visual, enhancing building aesthetics
- Efficient ventilation with push out windows for façade uniformity
- Supports automated opening/closing actuators
Technical Parameters
- Water Tightness: 15 psf
- Designed Pressure: CW 65 psf
- Thermal Insulation: 0.15 Btu/hft2F
- Acoustic Insulation: STC up to 44 dB
- Maximum Panel Weight: 660 lbs (300 kg)
- Maximum Panel Height: 10 ft (3M)
- Maximum Panel Width: 6 ft (1,8M)
- Glazing: Double and triple
